Overview
The Split Solar Street Light System offers maximum flexibility for projects requiring customized configurations. With separate components for the solar panel, battery box, and LED light head, this system allows optimal positioning of each element for maximum solar exposure and lighting performance.

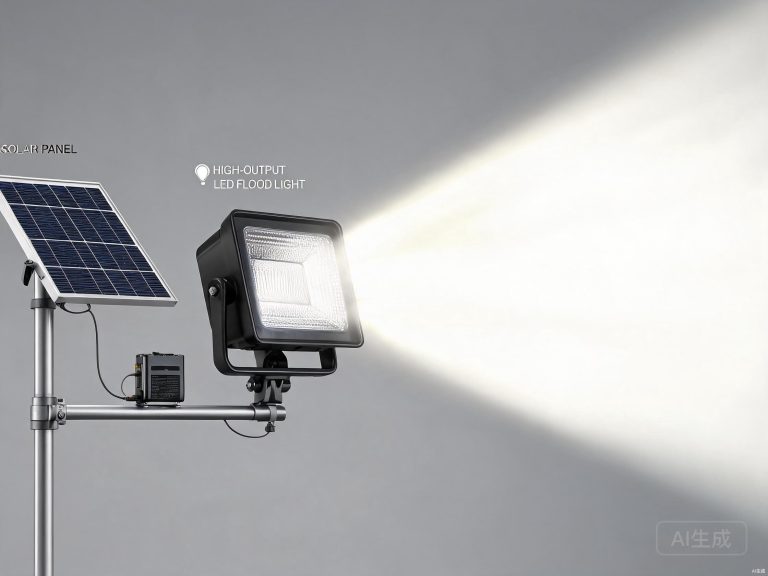

System Architecture
- Solar Panel (Rooftop/Top-of-Pole): Can be tilted and oriented independently for optimal sun exposure.
- Battery Box (Mid-Pole): Sealed battery enclosure with thermal management, accessible for maintenance.
- LED Light Head (Arm-Mounted): Precision optics for targeted light distribution patterns.
- Controller (Integrated): PWM/MPPT controller with dual-output and timer programming.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Output | 40W – 200W |
| Solar Panel | 80W – 300W Polycrystalline/Monocrystalline |
| Battery Type | GEL or LiFePO4 |
| Battery Capacity | 400Wh – 2048Wh |
| LED Efficiency | 170+ lm/W |
| Pole Height | 6m – 12m |
| Operating Temperature | -40°C to +70°C |
Best Suited For
- Highway and main road lighting
- Areas with shading challenges (panel can be placed separately)
- Projects requiring large battery storage capacity
- Retrofits on existing poles
