Project Description
Project Background
As part of Dubai’s Smart City initiative and commitment to sustainable infrastructure, the municipality launched a project to upgrade the lighting system along a 12-kilometer stretch of ring road. The existing high-pressure sodium (HPS) lights were energy-intensive, required frequent maintenance, and provided poor color rendering. The goal was to transition to solar-powered LED lighting while maintaining highway safety standards.
Challenge
The project required high-output lighting capable of meeting international highway illumination standards (average 20 lux), while operating entirely on solar power in Dubai’s extreme desert climate where summer temperatures regularly exceed 45°C. The system also needed to withstand sandstorms and provide reliable operation during the winter fog season when visibility is critically reduced.
Solution
Solaralite supplied 320 units of SPL-100 Split Solar Street Lights with enhanced specifications for the desert environment:
- High-efficiency monocrystalline solar panels (200W) with anti-reflective coating optimized for desert sun conditions, achieving 22% conversion efficiency.
- 100W LED light heads with precision optics delivering Type III medium beam distribution for uniform road coverage at 12-meter mounting height.
- LiFePO4 battery systems with 3-day autonomy and thermal management rated for -30°C to +70°C operation.
- Smart controllers with remote monitoring via GSM, enabling real-time status tracking and automated fault alerts.
Installation & Commissioning
The installation was executed over 4 months with zero road closures during peak traffic hours. All work was conducted between 11 PM and 5 AM to minimize disruption. Each pole was equipped with a galvanized steel foundation rated for 200 km/h wind loads and an anti-corrosion coating system designed for 25-year service life in coastal desert conditions.
Technical Specifications
| Total Units | 320 SPL-100 Split Solar Street Lights |
| Road Length | 12 km (both directions) |
| Pole Height | 12 meters |
| Average Illuminance | 20 lux (highway standard) |
| Wind Load Rating | 200 km/h |
| Color Temperature | 5000K (cool white) |
Products Used in This Project

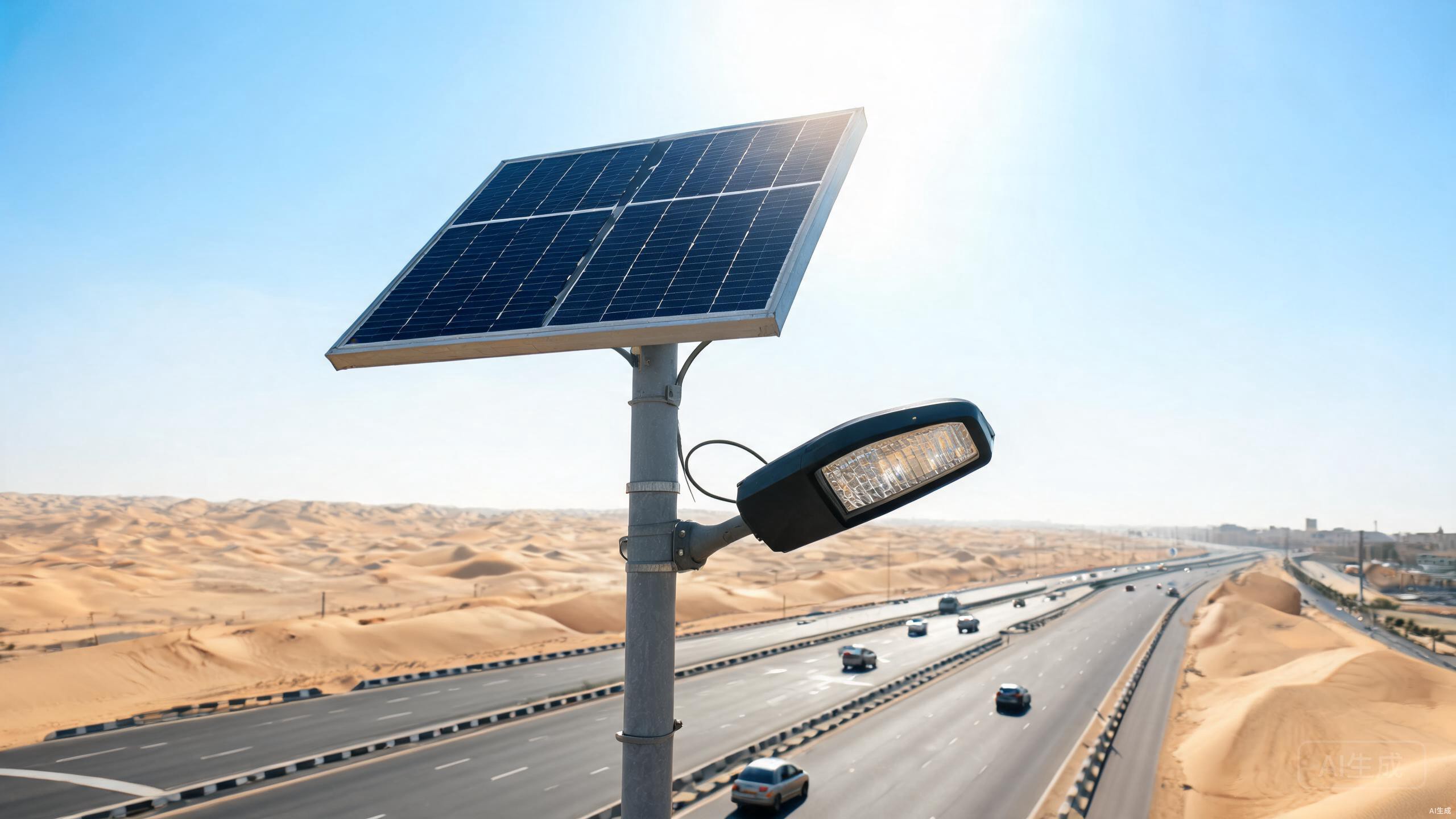

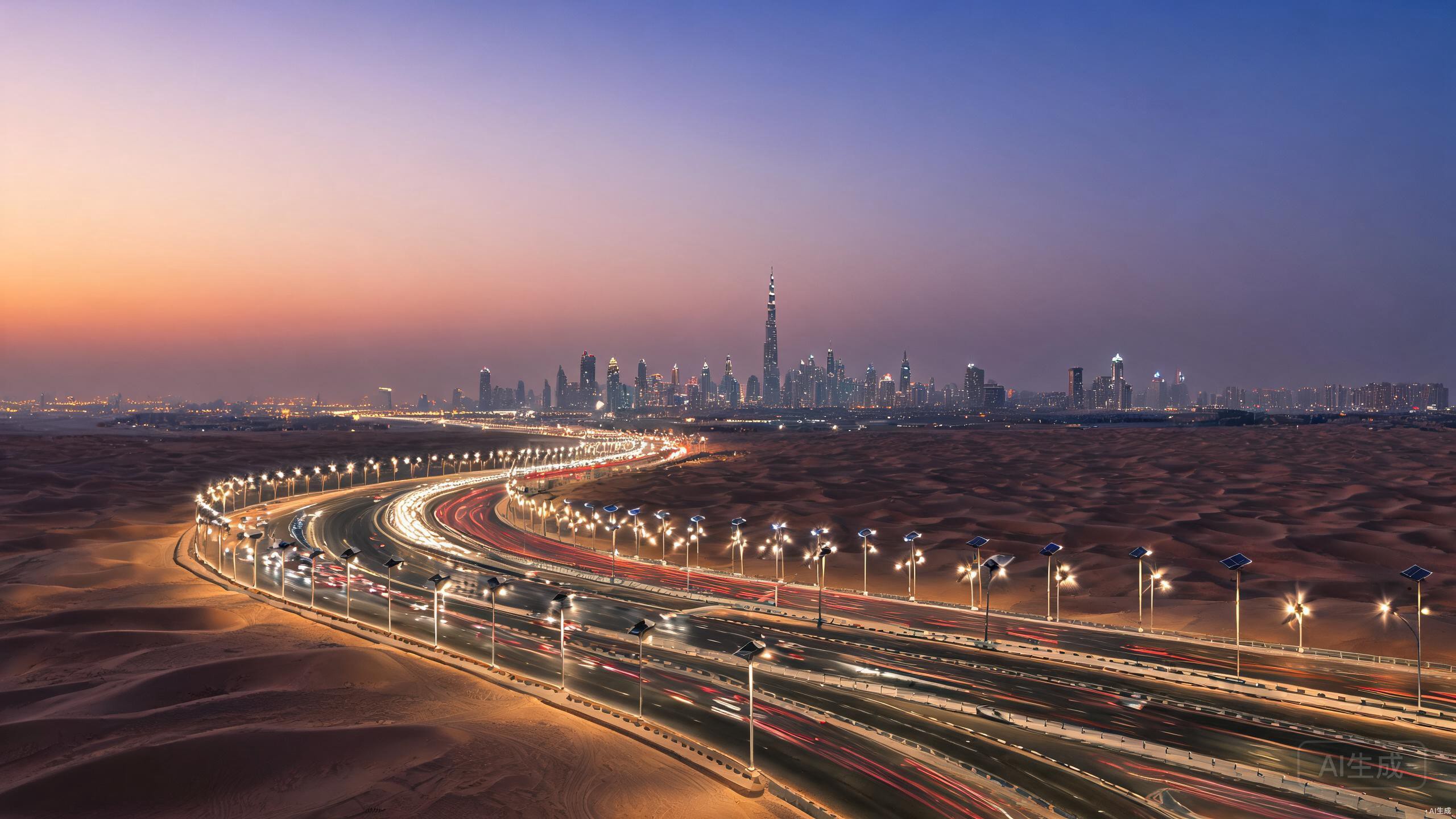

Installation Photos
Results & Impact
The Dubai ring road solar lighting upgrade has delivered exceptional performance since commissioning. The transition from HPS to solar LED lighting achieved an 85% reduction in energy consumption while improving road illumination quality by 60%. The cool white 5000K LED light provides superior color rendering (CRI > 70), enhancing driver visibility and reaction times.
The smart monitoring system has enabled proactive maintenance, with real-time alerts reducing fault response time by 90% compared to the previous manual inspection schedule. During the winter fog season, the enhanced illumination has contributed to a 30% reduction in fog-related traffic incidents. The project's success has led to Dubai Municipality approving Phase 2, which will extend solar lighting coverage by an additional 20 kilometers of ring road.
